Attributes
Part Number
IRF5305STRLPBF
Conn 1 Type
passive
Manufacturer
Infineon Technologies
Conn 2 Type
passive
Description

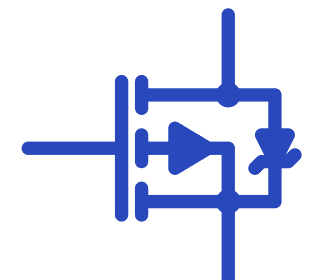

MOSFET P-CH 55V 31A D2PAK
Depletion Mode
False
Prefix
Q
Device Class L1
Discrete Semiconductors
Footprint Variant Name 0
Recommended_Land_Pattern
Device Class L2
Transistors
Max Forward Diode Voltage
-1.3V
Device Class L3
MOSFETs
Reverse Recovery Time
71ns
Temperature Range Low
-55°C
Reverse Recovery Charge
170nC
Temperature Range High
+175°C
Input Capacitace At Vds
1200pF @ -25V
Standoff Height
0mm
Gate Charge At Vgs
63nC @ -10V
RoHS
Yes
Turn On Delay Time
14ns
Package
D2Pak
Turn Off Delay Time
39ns
Mouser Part Number
Threshold Vgs Min
-2V
Mfg Package Ident Rev
901
Threshold Vgs Max
-4V
Mfg Package Ident Date
03/2007
Rthja Max
40°C/W
Mfg Package Ident
PG-TO263-3
Gate To Source Voltage
20V
Max Junction Temp
+175°C
Continuous Drain Current
-31A
Lead Free
Yes
Drain To Source Breakdown Voltage
-55V
Height
5.084mm
Drain To Source Resistance
0.06Ω
Digikey Part Number
Drain To Source Voltage
-55V
Digikey Description
MOSFET P-CH 55V 31A D2PAK
Pulse Drain Current
-110A
Centroid Not Specified
Yes
Power Dissipation
3.8W
Automotive
No
Number Of Channels
1
Verified Pin Names
true
Number Of P Channels
1
Verified Attributes
true
Verification Version
0.0.0.3
Verified Pad Assignment
true
Conn 0 Type
passive
Verified Geometry
true
