Texas Instruments MSP432P401RIPZR
7
0
0
ARM® Cortex®-M4F MSP432™ Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)

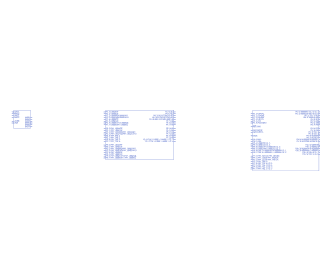

ECAD & Images (2)
Datasheets (1)
Datasheet
PDF
Attributes
Part Number
MSP432P401RIPZR
Conn 35 Type
I/O
Manufacturer
Texas Instruments
Conn 36 Type
I/O
Description
ARM® Cortex®-M4F MSP432™ Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
Conn 37 Type
I/O
Prefix
U
Conn 38 Type
I/O
Ambient Temperature Range High
+85°C
Conn 39 Type
power
Ambient Temperature Range Low
-40°C
Conn 40 Type
I/O
Automotive
No
Conn 41 Type
I/O
Centroid Not Specified
No
Conn 42 Type
power
Digikey Description
IC MCU 32BIT 256KB FLASH 100LQFP
Conn 43 Type
power
Digikey Part Number
296-44715-1-ND
Conn 44 Type
power
Height
1.6mm
Conn 45 Type
I/O
Lead Free
Yes
Conn 46 Type
I/O
Max Junction Temp
+85°C
Conn 47 Type
I/O
Mfg Package Ident
PZ0100A
Conn 48 Type
I/O
Mfg Package Ident Date
0
Conn 49 Type
I/O
Mfg Package Ident Rev
0
Conn 50 Type
I/O
Mouser Part Number
595-MSP432P401RIPZR
Conn 51 Type
I/O
Package
LQFP100
Conn 52 Type
I/O
RoHS
Yes
Conn 53 Type
I/O
Standoff Height
0.05mm
Conn 54 Type
I/O
Temperature Range High
+85°C
Conn 55 Type
I/O
Temperature Range Low
-40°C
Conn 56 Type
I/O
Device Class L1
Integrated Circuits (ICs)
Conn 57 Type
I/O
Device Class L3
Microcontrollers
Conn 58 Type
I/O
Device Class L2
Embedded Processors and Controllers
Conn 59 Type
I/O
Ram Size
64KBytes
Conn 60 Type
I/O
Number Of I/Os
84
Conn 61 Type
I/O
Min Supply Voltage
1.62V
Conn 62 Type
I/O
Memory Type
FLASH
Conn 63 Type
I/O
Memory Size
256KBytes
Conn 64 Type
I/O
Max Supply Voltage
3.7V
Conn 65 Type
I/O
Frequency
48MHz
Conn 66 Type
I/O
Number Of Timers/Counters
6
Conn 67 Type
I/O
Number Of Cores
1
Conn 68 Type
I/O
Number Of Uart Channels
4
Conn 69 Type
I/O
Number Of Spi Channels
8
Conn 70 Type
I/O
Number Of Pwm Channels
4
Conn 71 Type
power
Number Of I2c Channels
4
Conn 72 Type
power
Number Of Adc Channels
24
Conn 73 Type
I/O
Number Of A/D Converters
1
Conn 74 Type
I/O
Interface
I2C,SPI,UART,IrDA,Other
Conn 75 Type
I/O
Nominal Supply Current
260-690uA
Conn 76 Type
I/O
Core Architecture
Arm Cortex-M4F
Conn 77 Type
I/O
Data Bus Width
32bits
Conn 78 Type
I/O
Conn 0 Type
I/O
Conn 79 Type
I/O
Conn 1 Type
I/O
Conn 80 Type
I/O
Conn 2 Type
I/O
Conn 81 Type
power
Conn 3 Type
I/O
Conn 82 Type
input
Conn 4 Type
I/O
Conn 83 Type
I/O
Conn 6 Type
I/O
Conn 84 Type
I/O
Conn 7 Type
I/O
Conn 85 Type
I/O
Conn 8 Type
I/O
Conn 86 Type
power
Conn 9 Type
I/O
Conn 87 Type
I/O
Conn 10 Type
I/O
Conn 88 Type
I/O
Conn 11 Type
power
Conn 89 Type
I/O
Conn 12 Type
power
Conn 90 Type
I/O
Conn 13 Type
power
Conn 91 Type
I/O
Conn 14 Type
power
Conn 92 Type
I/O
Conn 15 Type
I/O
Conn 93 Type
I/O
Conn 16 Type
I/O
Conn 94 Type
I/O
Conn 17 Type
I/O
Conn 95 Type
I/O
Conn 18 Type
I/O
Conn 96 Type
I/O
Conn 19 Type
I/O
Conn 97 Type
I/O
Conn 20 Type
I/O
Conn 98 Type
I/O
Conn 21 Type
I/O
Conn 99 Type
I/O
Conn 22 Type
I/O
Conn 5 Type
I/O
Conn 23 Type
I/O
Ipc Land Pattern Name
QFP50P1600X1600X160-100
Conn 24 Type
I/O
Footprint Variant Name 3
IPC_C
Conn 25 Type
I/O
Footprint Variant Name 2
IPC_B
Conn 26 Type
I/O
Footprint Variant Name 1
IPC_A
Conn 27 Type
I/O
Footprint Variant Name 0
Recommended_Land_Pattern
Conn 28 Type
I/O
Verified Pin Names
true
Conn 29 Type
I/O
Verified Attributes
true
Conn 30 Type
I/O
Verified Pad Assignment
true
Conn 31 Type
I/O
Verified Geometry
true
Conn 32 Type
I/O
Verification Version
0.0.0.3
Conn 33 Type
I/O
Mfg Package Ident Component Id
71b24c22ba8cb732
Conn 34 Type
I/O
