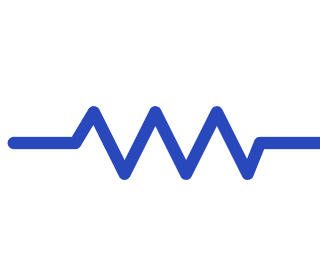

Yageo AC0805FR-076K8L

Part Number

AC0805FR-076K8L

Power Rating

1/8W

Manufacturer

Yageo

Resistance

6.8KΩ

Description

Temperature Coefficient

Prefix

R

Voltage Rating

150V

Automotive

Yes

Series

AC

Automotive Grade

Grade 0

Conn 1 Type

passive

Centroid Not Specified

No

Conn 0 Type

passive

Footprint Url

http://www.yageo.com/exep/pages/download/literatures/PYu-R_Mount_10.pdf

Ipc Land Pattern Name

RESC200125X50

Height

0.6mm

Footprint Variant Name 3

IPC_C

Lead Free

Yes

Footprint Variant Name 2

IPC_B

Mfg Package Ident

AC0805

Footprint Variant Name 1

IPC_A

Mfg Package Ident Date

0

Footprint Variant Name 0

Recommended_Land_Pattern

Mfg Package Ident Rev

0

Verified Pin Names

true

Package

0805

Verified Attributes

true

RoHS

Yes

Verified Pad Assignment

true

Temperature Range High

+155°C

Verified Geometry

true

Temperature Range Low

-55°C

Verification Version

0.0.0.2

Tolerance

0.01

Mouser Part Number

603-AC0805FR-076K8L

Composition

Thick Film

Mouser Description

Thick Film Resistors - SMD 1/8W 6.8K ohm 1% AEC-Q200

Device Class L1

Passive Components

Digikey Description

RES SMD 6.8K OHM 1% 1/8W 0805

Device Class L2

Resistors

Digikey Part Number

YAG3748TR-ND

Device Class L3

Chip SMD Resistors

Yageo AC0805FR-076K8L
